銅纜佈線產品

din-rail-stp_01
din-rail-stp_01din-rail-stp_02din-rail-stp_03din-rail-stp_04

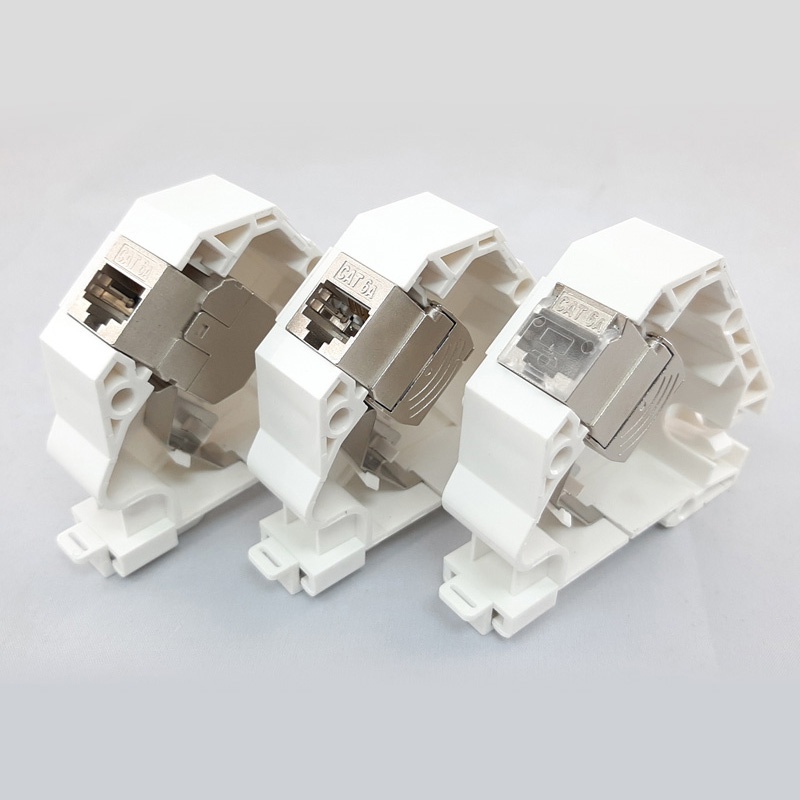

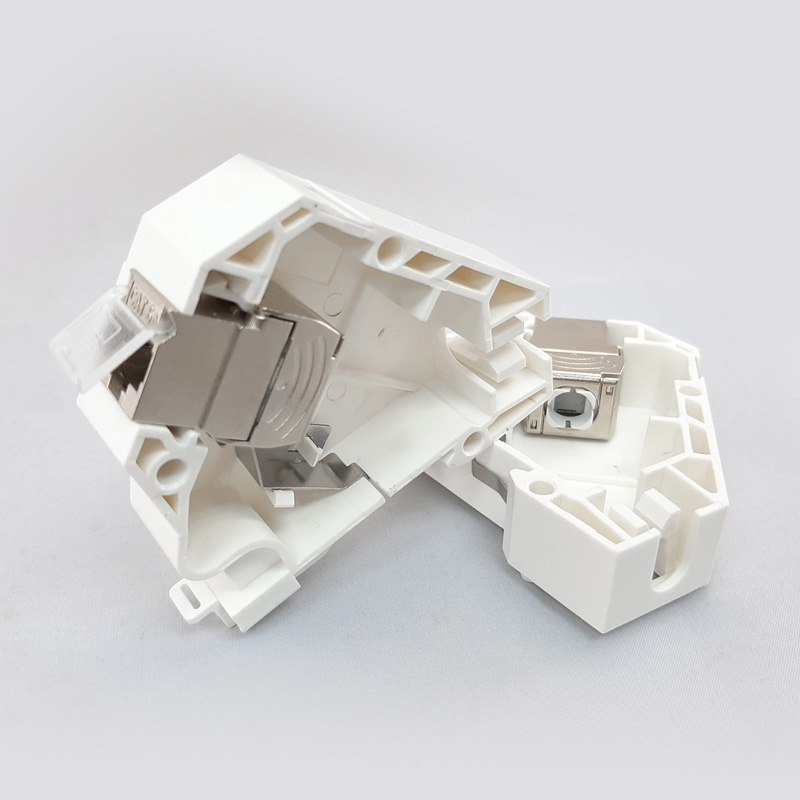

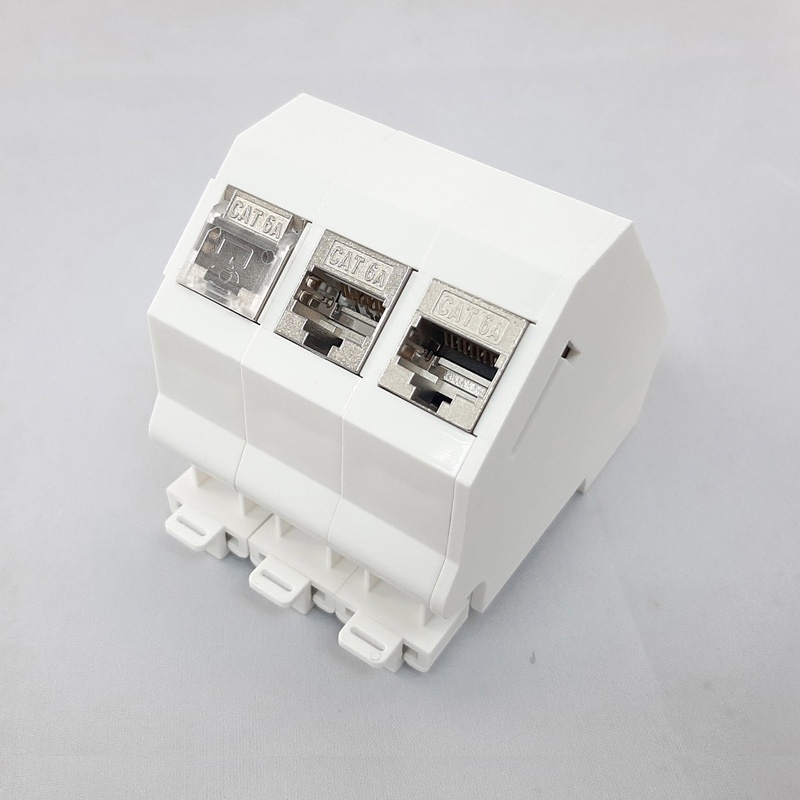

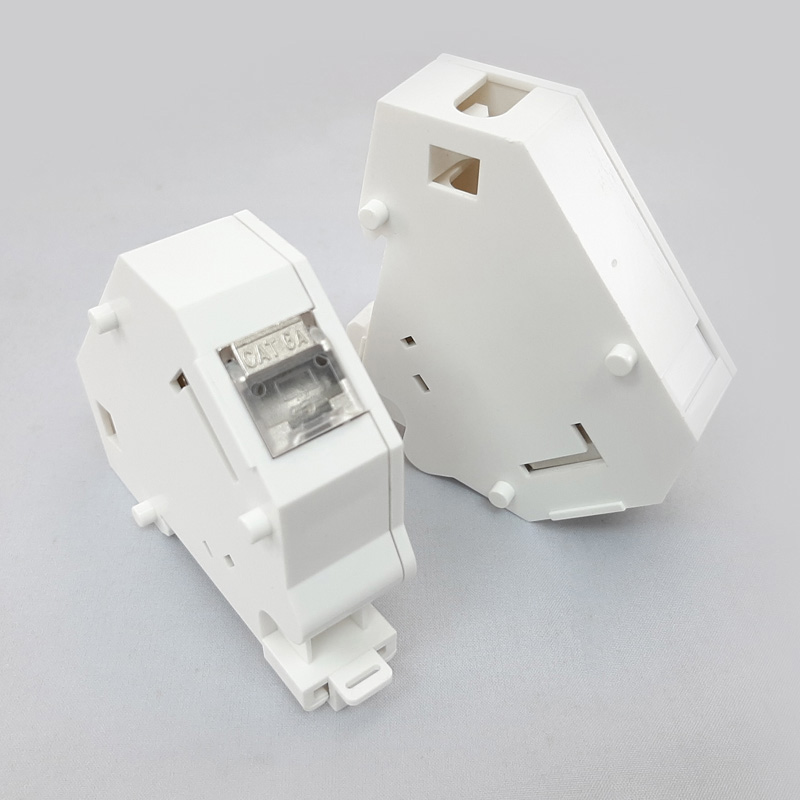

Din Rail Mountable Adapter

DRS-WH

Din rail mountable adapter for use in industrial automation and control panels can be fitted on to any 35 mm standard (DIN) rail. Electrical grounding realized by means of an integratIts width allows for installations of up to 12 modules in a row in any standard electrical distributor.

  • Identify ports and stations by using ample space
  • Works with standard RJ45 keystone
  • ISO/IEC 60603-7 Compliant


  • 規格
  • 圖樣

Specification

  • Meets TIA/EIA-568.2-D
  • ISO/IEC 11801:2002
  • ISO/IEC 60603-7 compliant

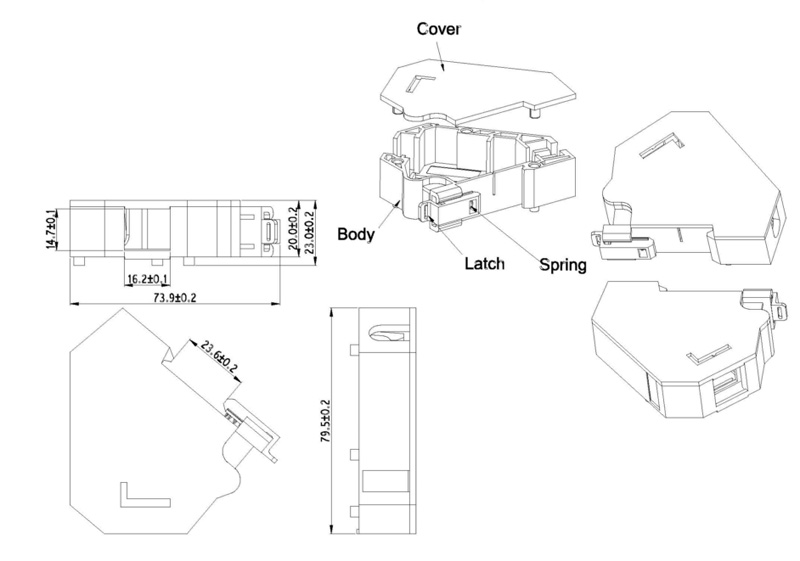

Materials

  • Cover:ABS
  • Body:ABS
  • Latch:ABS
  • Spring:SUS304
  • Ground:SUS304
