Cat 6 Unshielded 180 Degree Punch Down Keystone Jack

SC80-6CA

Category 6 modular jack, RJ-45 keystone jack, 8 position 8 conductor (8P8C) provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advance printed circuit board provides optimum digital quality with maximum headroom. Designed to easily snap in and out of wall outlets, patch panels, and surface boxes.

  • Dust door & shurrtered door available
  • ANSI/TIA-568.D-2
  • UL safety listed
  • RoHS compliant


下載
  • 規格
  • 圖樣
  • 採購資訊

Specification

  • Meets TIA/EIA-568.2-D Cat 6 Channel and 15M short Permanent Link requirements.
  • IDC Type: Dual

Electrical

  • Insulation resistance: 500MΩhm minimum@100 Vdc
  • Dielectric withstanding voltage: 1000 Vac rms@60Hz for one minute
  • Current Rating: 1.5 Amps
  • Spring wire contact resistance: 20 mΩhm maximum
  • IDC contact resistance: 2.5 mΩhm maximum

Mechanical

  • Total contact force: >100 GRAMS per contact wire lead
  • Retention: 50 N (11 Ibf) for 60s ± 5s
  • Durability: 750 cycles minimum
  • Conductor compatibility: 22~24 AWG
  • Temperature storage: -40°C to +70°C
  • Temperature operation: -10°C to +60°C
  • Relative humidity operation: Maximum noncondensing 93%

 Materials

  • Housing: Zinc-alloy fully shielded
  • IDC housing: High impact flame retardant plastic, UL 94V-0 rated
  • PCB: FR4, 1.6mm thickness
  • Spring wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 of gold over 70~100 micro-inch of nickel
  • IDC: phosphor bronze alloy plated with 100 micro-inch of tin
  • Cap: Zinc-alloy

Part Number

Description

Colour

SC80-6CA

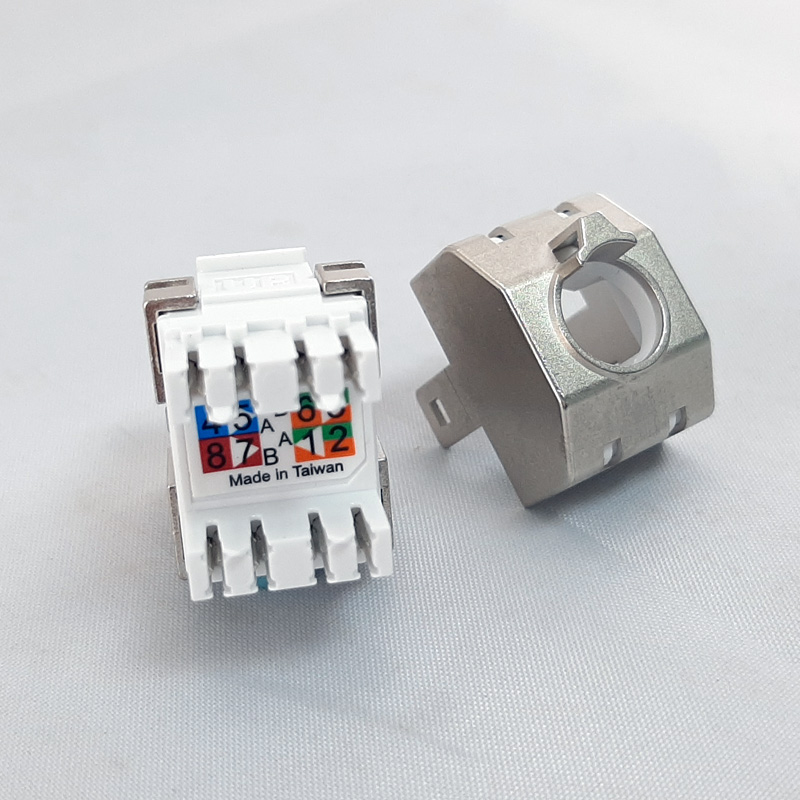

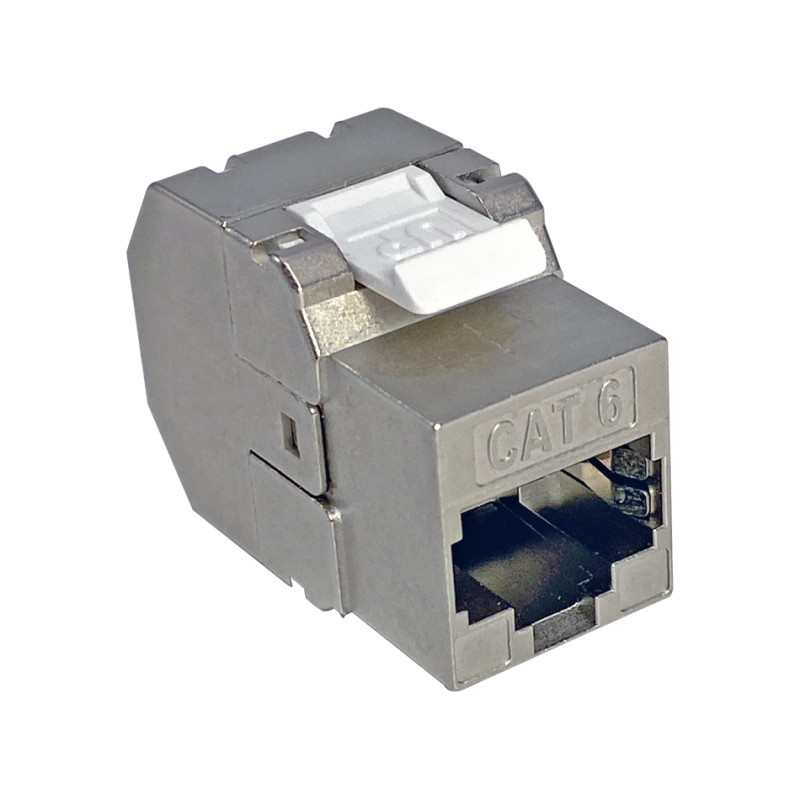

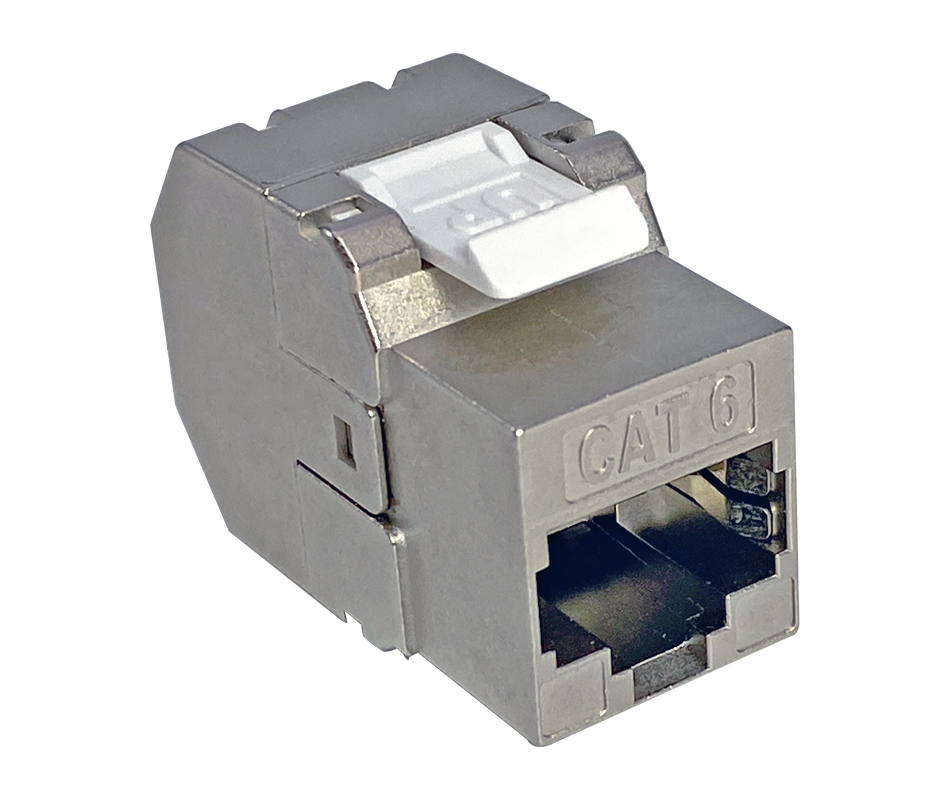

Cat 6 STP 180 Degree Punch Down Keystone Jack

Silver (Metallic)

SC80-6CB

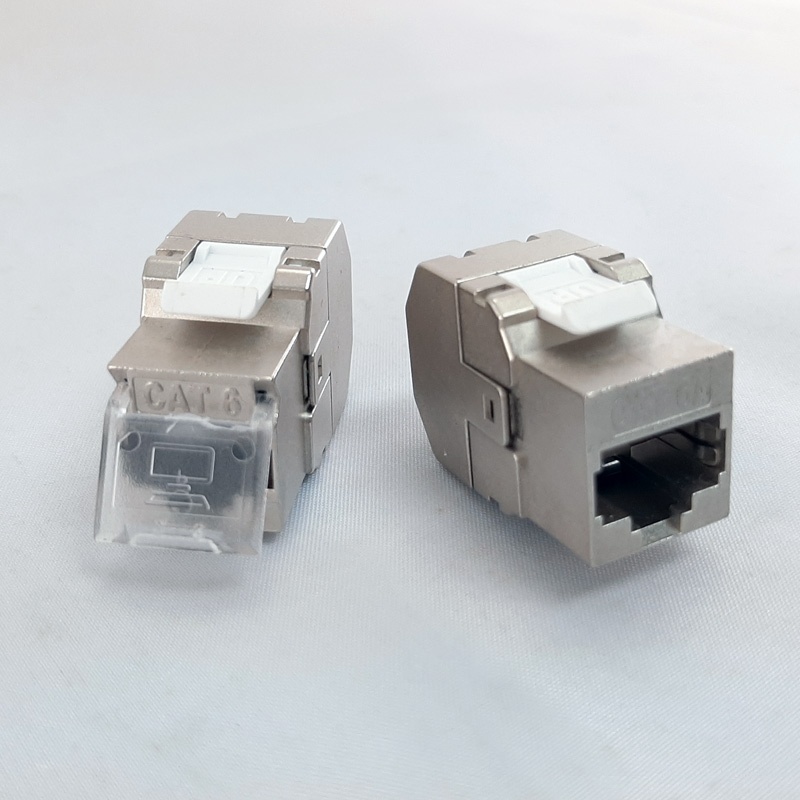

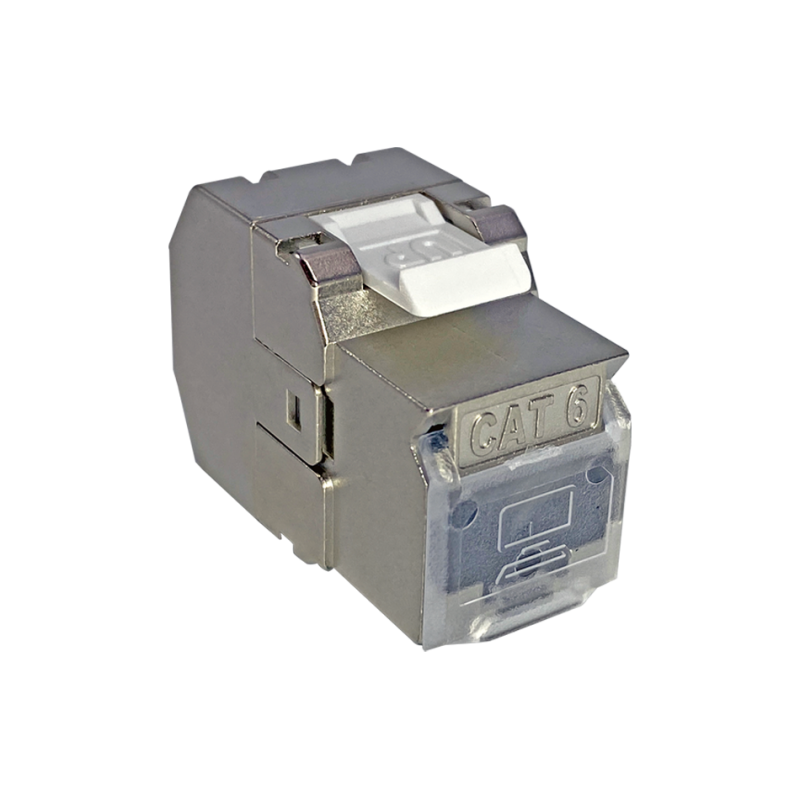

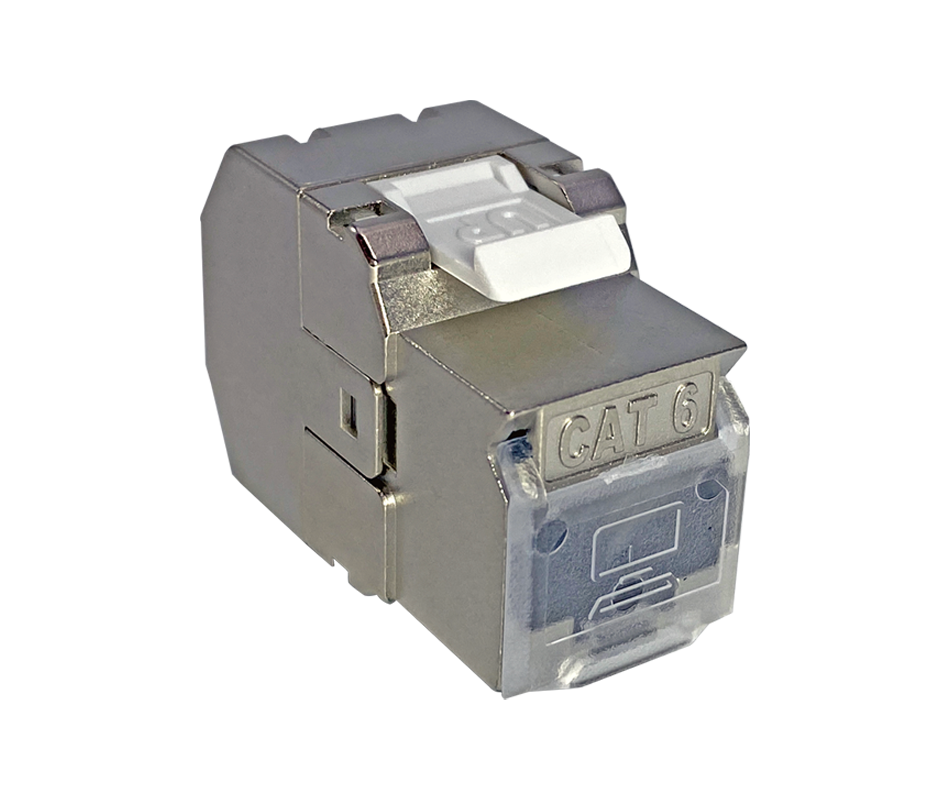

Cat 6 STP 180 Degree Punch Down Keystone Jack, with Dust Cover
