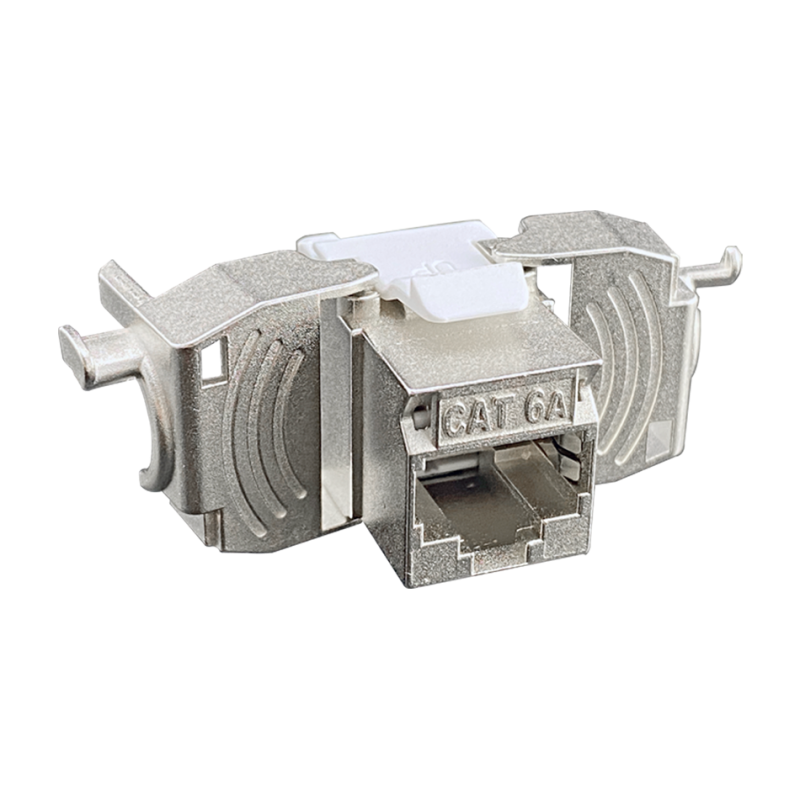

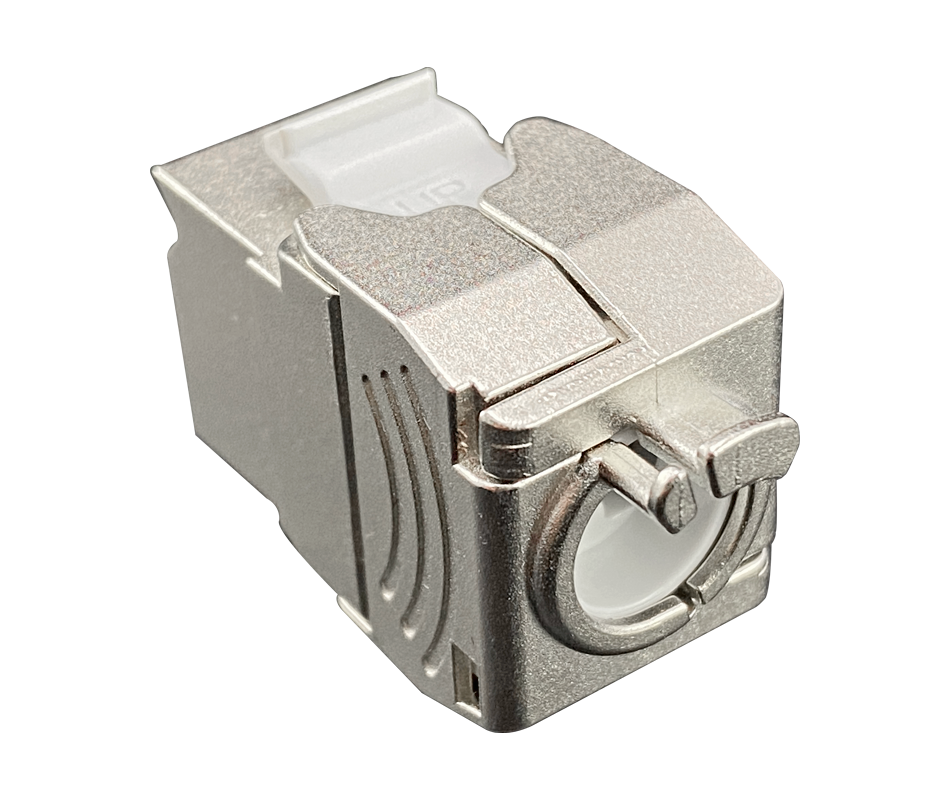

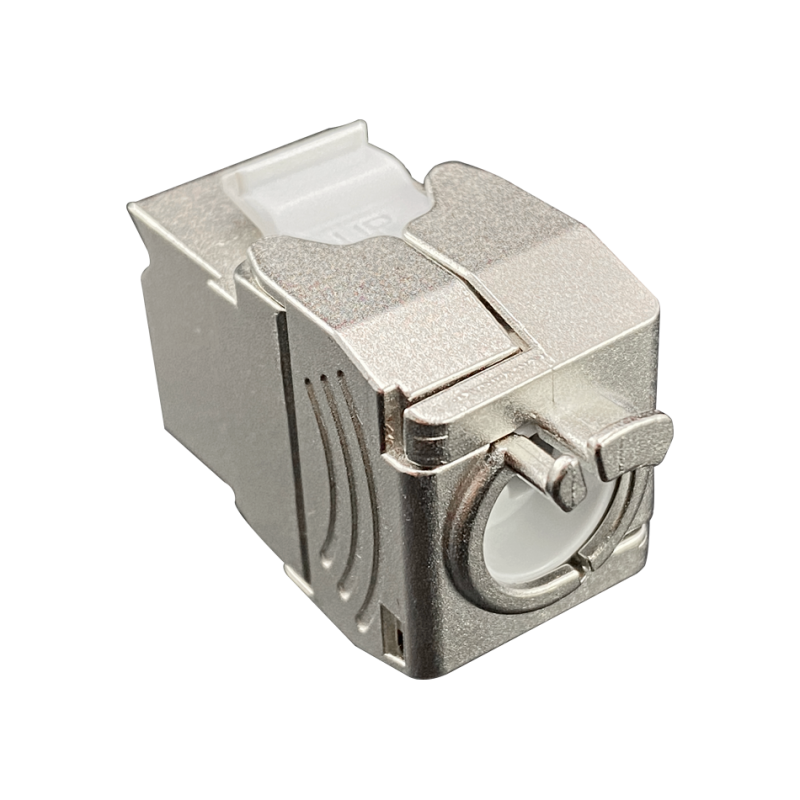

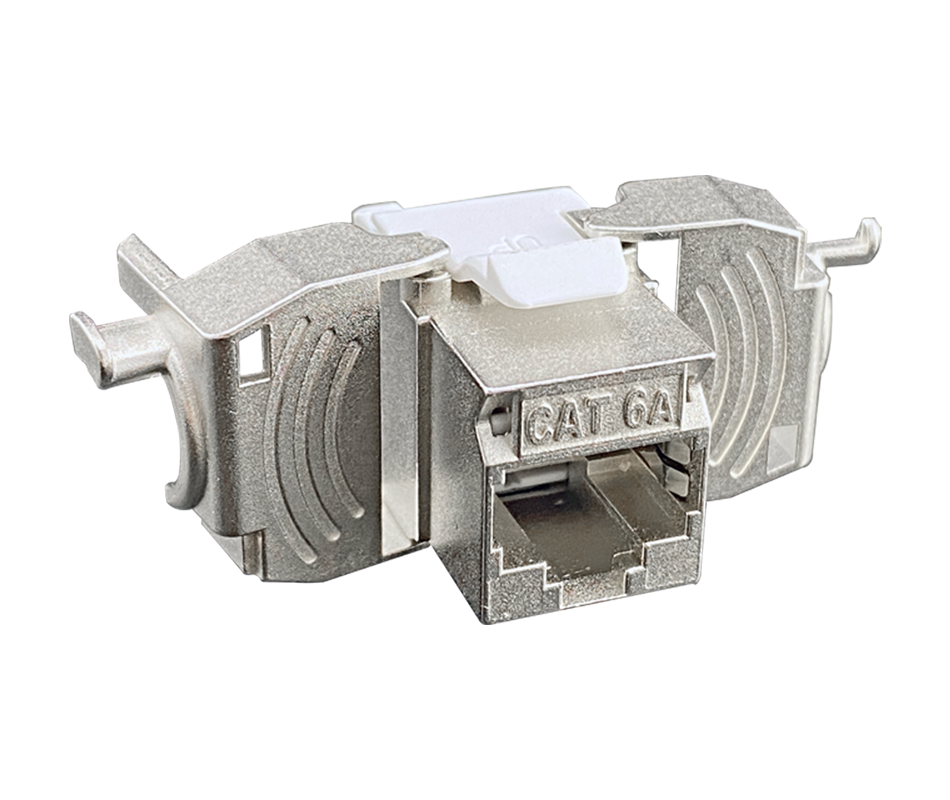

Cat 6A Shielded 180 Degree Toolless Jack (Low Profile)

SC80-6AHT-A

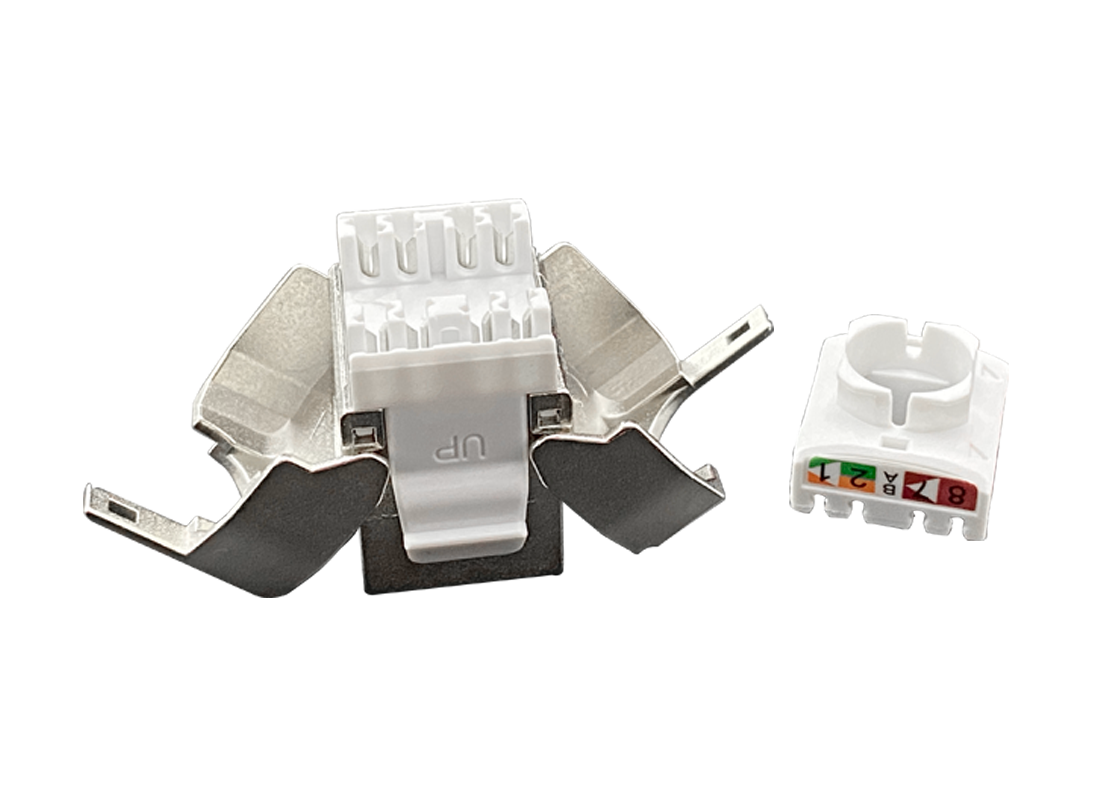

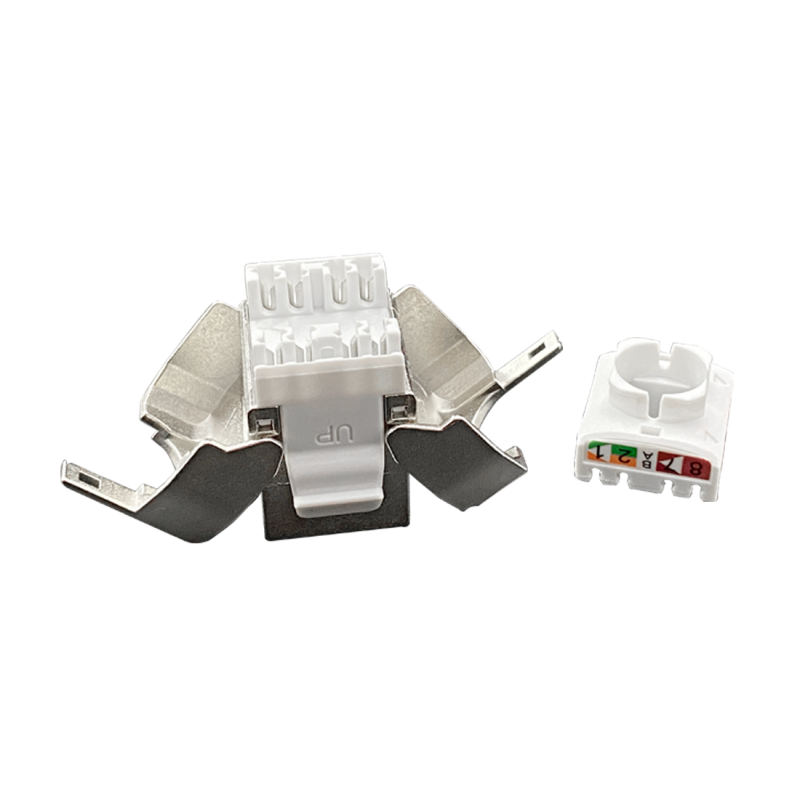

The category 6A low profile unshielded toolless jack, is a shortened and smaller size toolless termination RJ45 socket. 8 position 8 conductor (8P8C) provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advance printed circuit board provides optimum digital quality with maximum headroom. Designed to easily snap in and out of wall outlets, patch panels, and surface boxes.

  • Dust door & shurrtered door avaiable
  • ANSI/TIA-568.2-D
  • ETL verified and UL safety listed
  • ETL Certified PoE++
  • RoHS compliant


下載
  • 規格

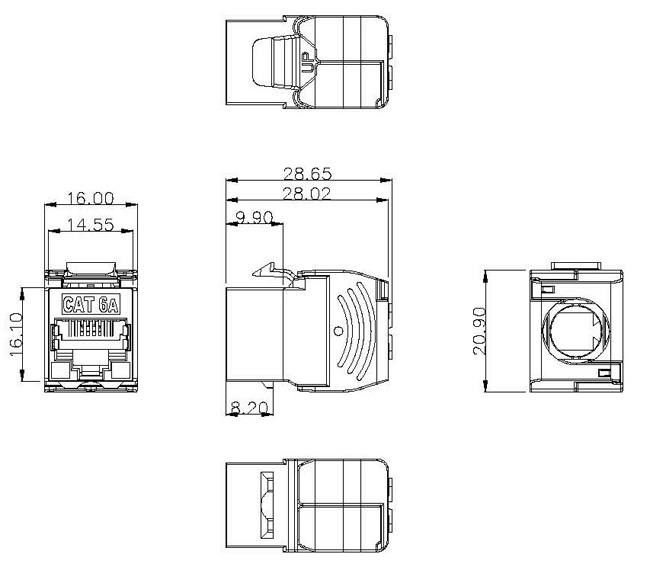

  • 圖樣
  • 採購資訊

Specification

  • Meets TIA/EIA-568.2-D. Cat.6A connecting hardware

Electrical

  • Insulation resistance: 500MΩhm minimum@100 Vdc
  • Dielectric withstanding voltage: 1000 Vac rms@60Hz for one minute
  • Current Rating: 1.5 Amps
  • Spring wire contact resistance: 20 mΩhm maximum
  • IDC contact resistance: 2.5 mΩhm maximum

Mechanical

  • Total contact force: >100 GRAMS per contact wire lead
  • Retention: 50 N (11 Ibf) for 60s ± 5s
  • Durability: 750 cycles minimum
  • Conductor compatibility: 22~24 AWG
  • Temperature storage: -40°C to +70°C
  • Temperature operation: -10°C to +60°C
  • Relative humidity operation: Maximum noncondensing 93%

 Materials

  • Housing: Zinc-alloy fully shielded
  • PCB: FR4, 1.6mm thickness
  • Spring wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 of gold over 70~100 micro-inch of nickel
  • IDC:phosphor bronze alloy plated with 100 micro-inch of tin

Part Number

Description

Colour

SC80-6AHT-A

Cat 6A STP 180 Degree Toolless Keystone Jack (Mini)

Silver (Metallic)

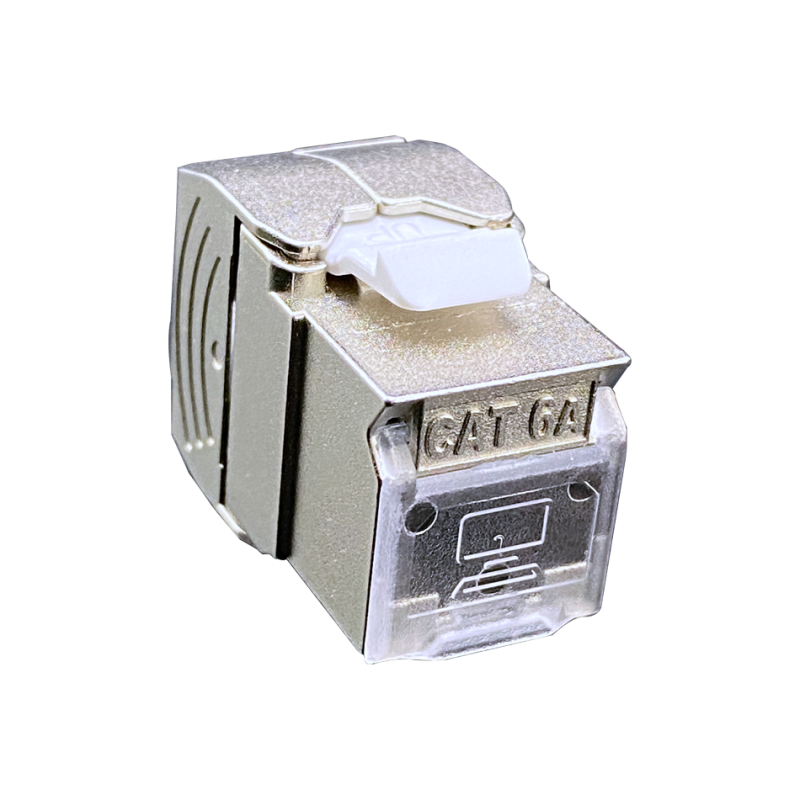

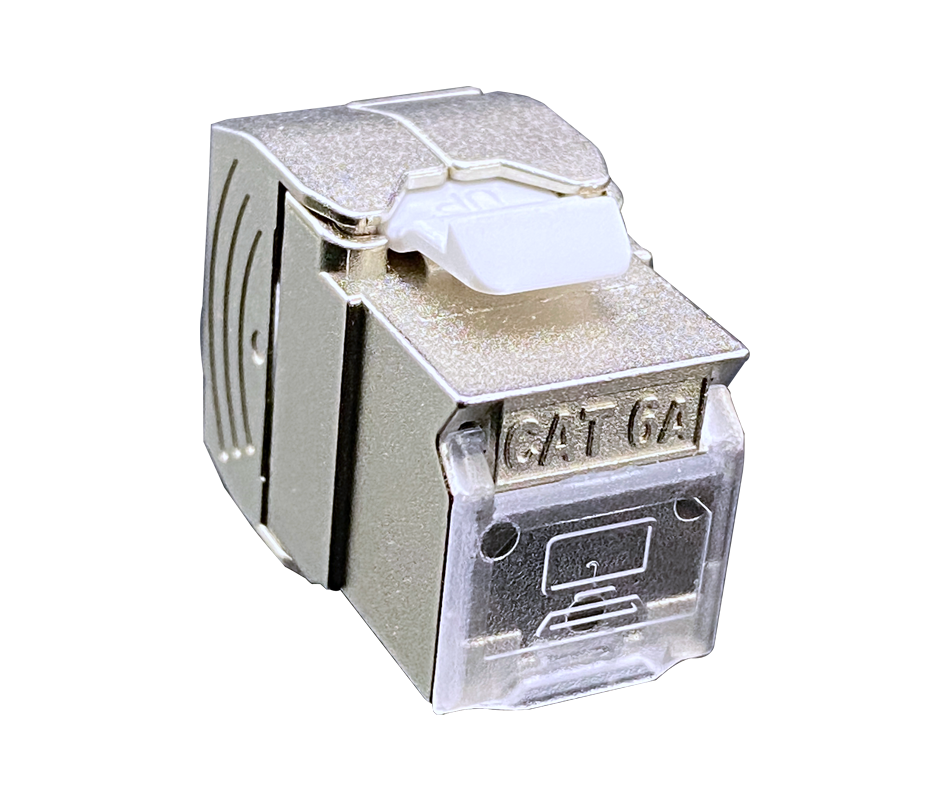

SC80-6AHT-B

Cat 6A STP 180 Degree Toolless Keystone Jack (Mini), with Dust Cover
