Specification
- Meets TIA/EIA-568.2-D Cat5e requirements
- IDC Type: 110
Electrical
- Insulation Resistance : 500 MΩhm minimum @ 100 Vdc
- Dielectric Withstanding Voltage : 1000 Vac rms @ 60Hz for one minute
- Current Rating : 1.5 Amps
- Spring wire contact resistance : 20 mΩhm maximum
- IDC Contact resistance : 2.5 mΩhm maximum
Mechanical
- Total Contact force : >100 GRAMS per contact wire lead
- Retention : 50 N(11 Ibf) for 60s ± 5s
- Durability : 750 cycles minimum
- Conductor compatibility : 22~24AWG
- Temperature range storage : -40℃ ~ +70℃
- Temperature range operation : -10℃ ~ +60℃
- Relative humidity operation : Maximum noncondensing 93%
Materials
- Housing : High lmpact flame retardant plastic,UL 94 V-0 Rated
- PCB : FR4, 1.6mm thickness
- Spring wire : Phosphor Bronze Alloy plated with 50 micro-inch of gold over 70 ~ 100 micro-inch of nickel
- IDC : Phosphor Bronze alloy plated with 100 micro-inch of tin
|
Part Number /型號 |
Description / 描述 |
Packing Unit / 包裝 |
|
FL-51KU-0X |

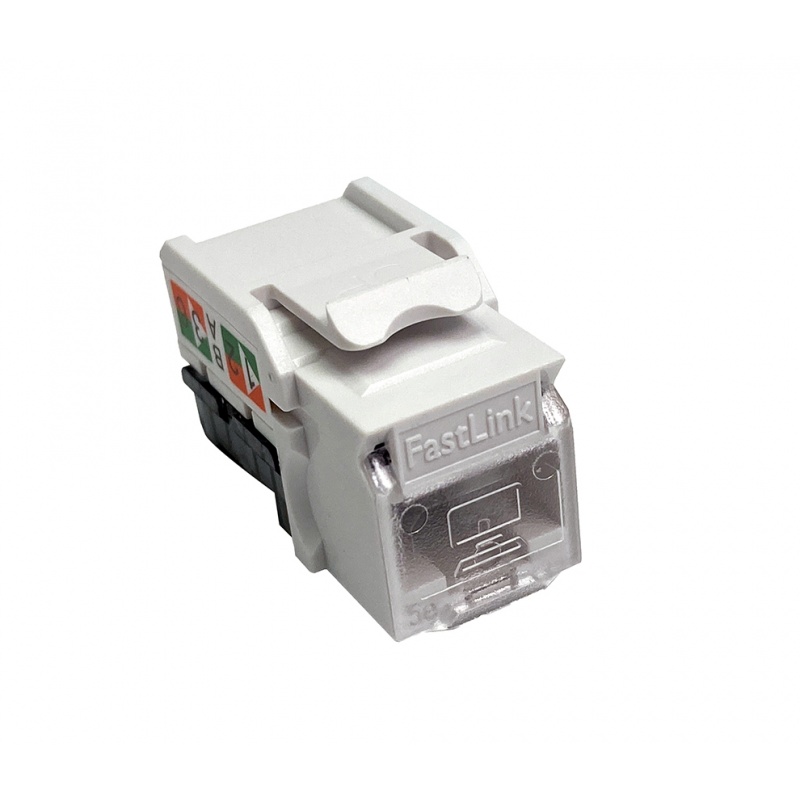

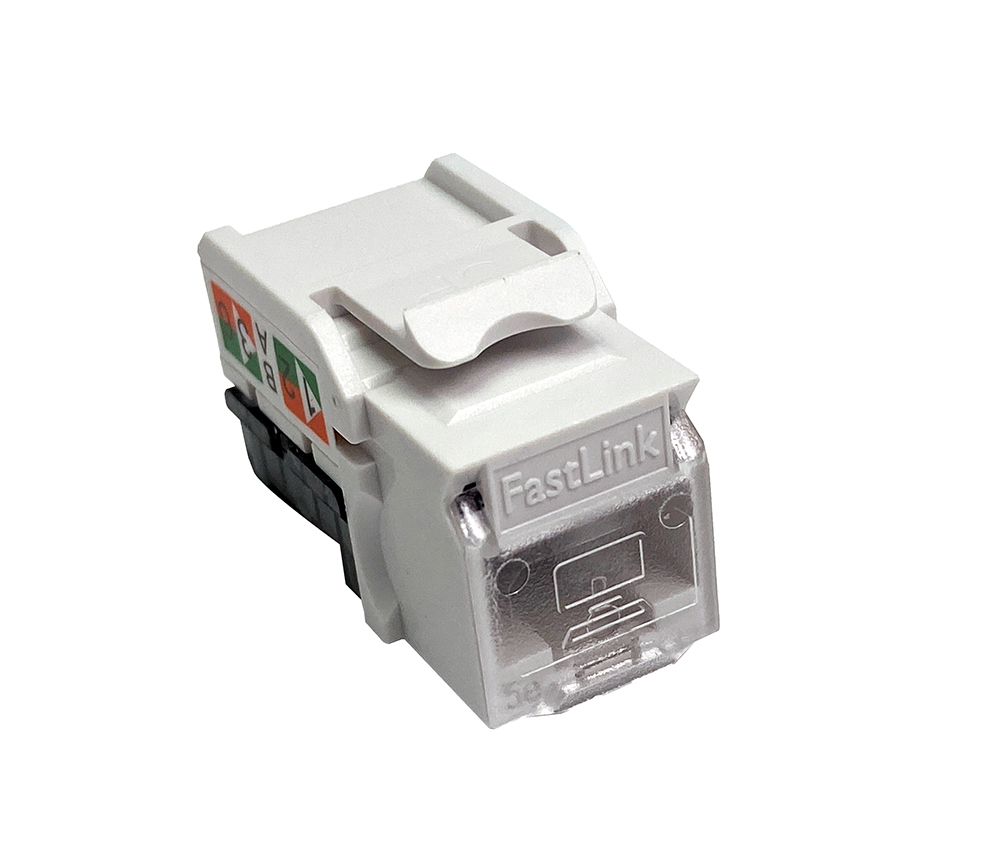

Cat 5e UTP 90 Degree Punch Down Keystone Jack, 外掀式防塵門 |
1pcs/pk. |
|
FL-51KU-PX |

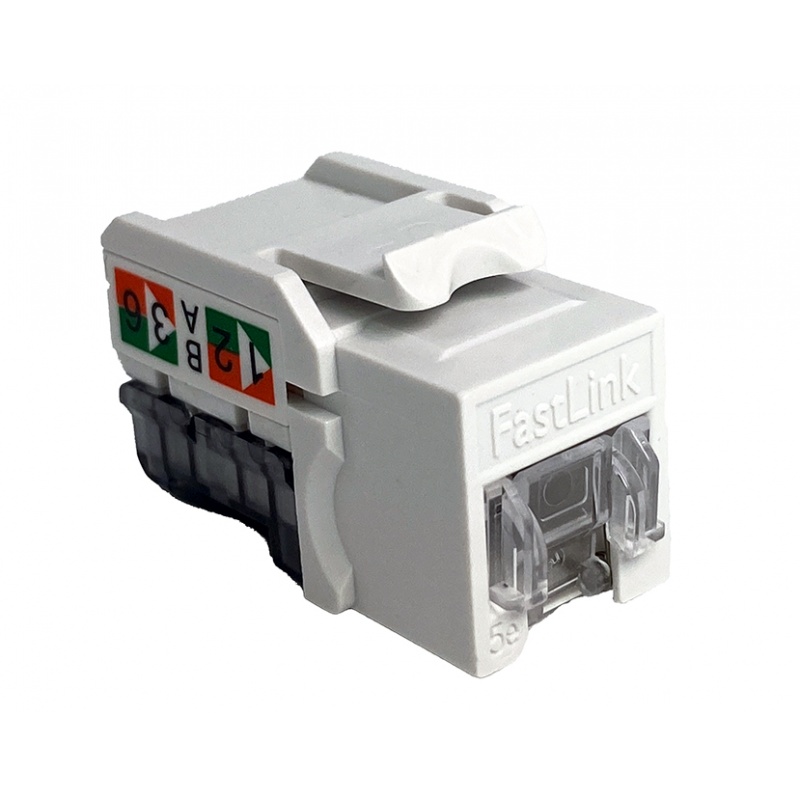

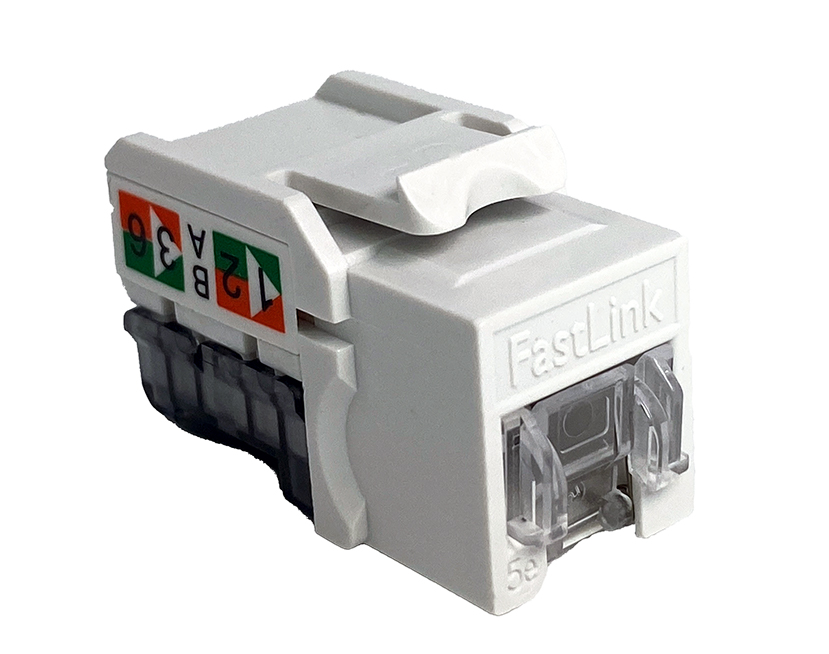

Cat 5e UTP 90 Degree Punch Down Keystone Jack, 內推式防塵門 |
1pcs/pk. |
|

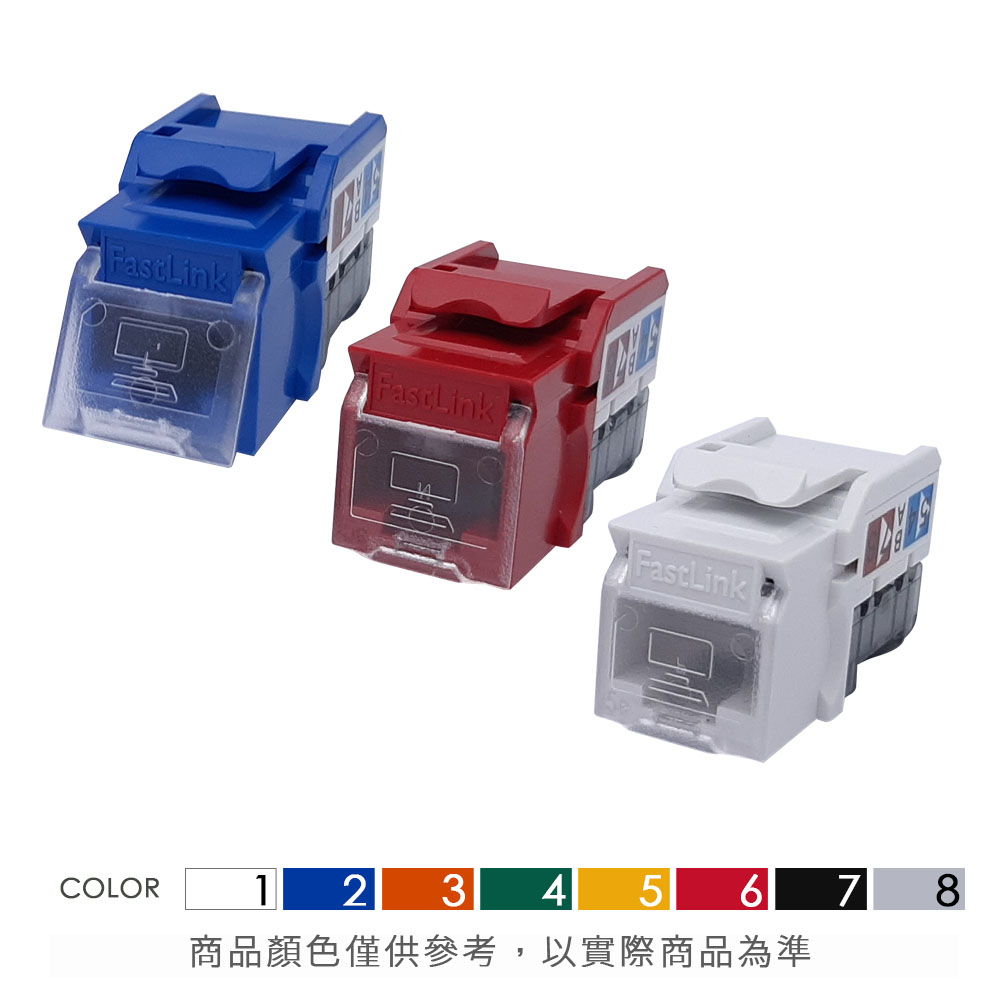

X＝顏色代碼
|
1 白色 |
2 藍色 |
3 橘色 |
4 綠色 |
| 5 黃色 | 6 紅色 | 7 黑色 | 8 灰色 |
