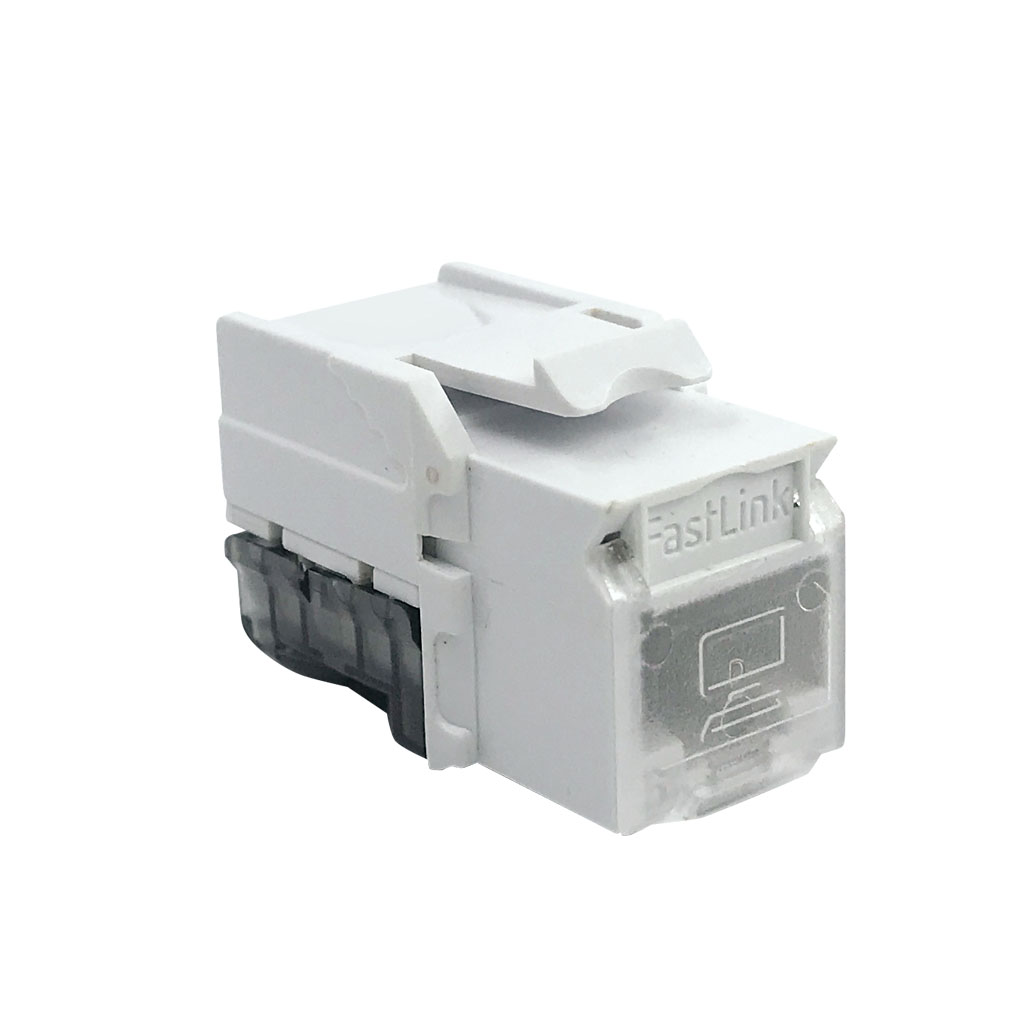

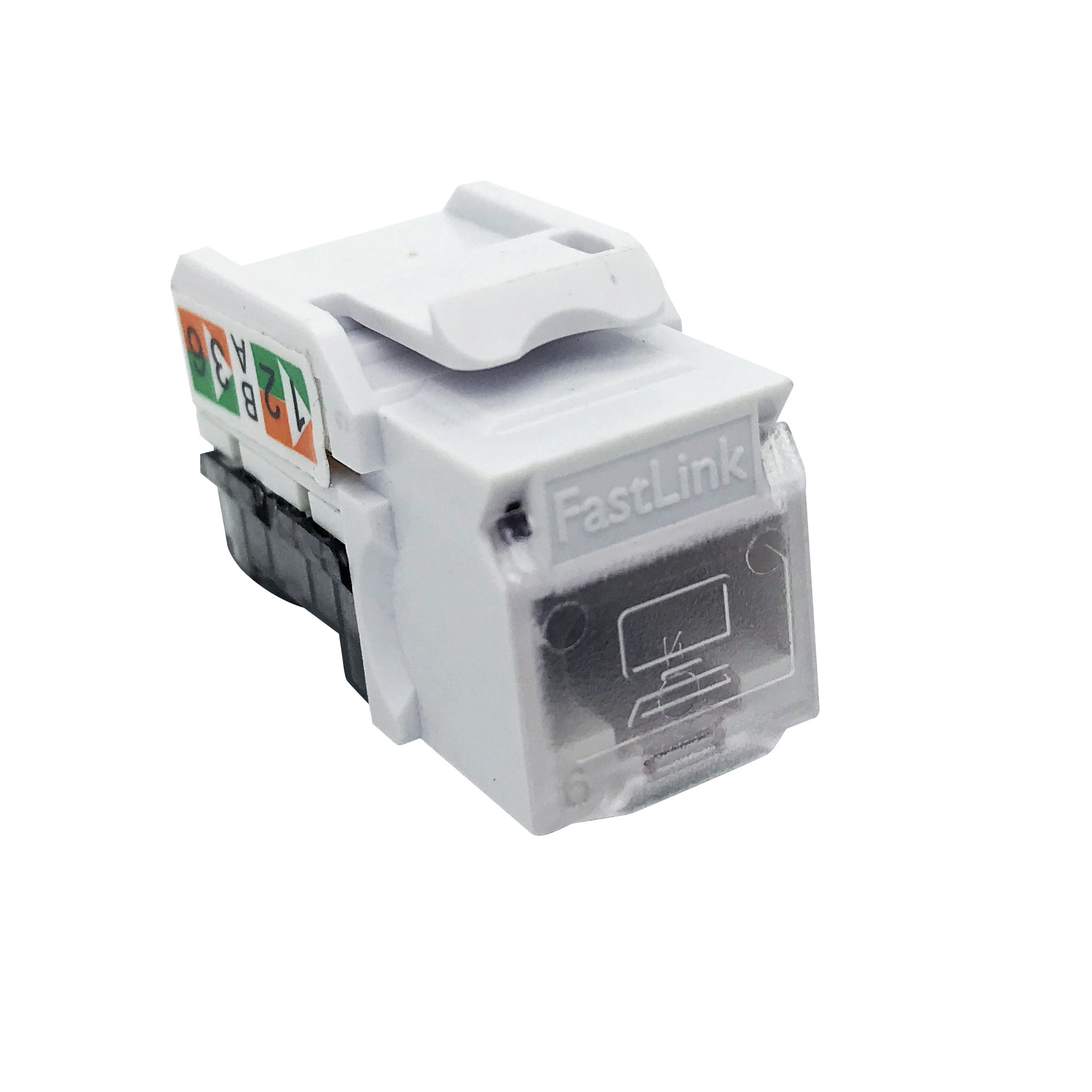

Cat 6 非遮蔽式 90 度 Punch Down 資訊插座

Specification

• Meets TIA/EIA-568.2-D. Cat.6 channel and 15M short permanent link requirements.
• IDC: Dual

Electrical

• Insulation resistance: 500MΩhm minimum@100 Vdc
• Dielectric withstanding voltage: 1000 Vac rms@60Hz for one minute
• Current Rating: 1.5 Amps
• Spring wire contact resistance: 20 mΩhm maximum
• IDC contact resistance: 2.5 mΩhm maximum

Mechanical

• Total contact force: >100 GRAMS per contact wire lead
• Retention: 50 N (11 Ibf) for 60s ± 5s
• Durability: 750 cycles minimum
• Conductor compatibility: 22~24 AWG
• Temperature storage: -40°C to +70°C
• Temperature operation: -10°C to +60°C
• Relative humidity operation: Maximum noncondensing 93%

 Materials

• Housing: High impact flame retardant plastic, UL 94V-0 rated
• PCB: FR4, 1.6mm thickness
• Spring wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel
• IDC: phosphor bronze alloy plated with 100 micro-inch of tin
